Magnaflux NDT Consumables for Aerospace Inspection
Zyglo® fluorescent penetrants from Level 2 to Level 4, the developer, emulsifier and UV lamp to run them, fluorescent magnetic particle powder and baths, visible dry-method particles, and Ultragel® II ultrasonic couplant. Every consumable carries the English and Spanish safety data sheets and Magnaflux's data sheet — so the part number you need is one click from the cart.
Zyglo® Penetrants, Level 2 to Level 4
Four Magnaflux fluorescent penetrants, each listed with the Type, Method and Sensitivity Level from its product data sheet so you can match it to the callout in your procedure.
Zyglo® ZL-60D — Level 2, Water Washable
- Type 1 · Fluorescent
- Method A · Water Washable
- Method C · Solvent Removable
- Level 2 · Medium Sensitivity
- Built for rough surfaces — Magnaflux developed ZL-60D for rough machined parts: it washes off quickly and leaves less fluorescent background, so indications read cleaner on castings and forgings
- Alloy compatible — Magnaflux states it is safe on most engineering and aerospace materials, including aluminum, steel, nickel and titanium
- Specification coverage — Magnaflux lists ZL-60D on the QPL SAE AMS 2644 Qualified Product List, and lists AMS 2644, ASTM E1417, ISO 3452-2, ASME BPVC and OEM specifications on the product data sheet
| Size | Magnaflux Part No. |
|---|---|
| Aerosol can (case of 12) | 01-3272-78 |
| 5 gal / 18.9 L | 01-3272-40 |
| 20 gal / 75.7 L drum | 01-3272-30 |
| 55 gal / 208 L drum | 01-3272-45 |
Aerosol ships by the case of 12 and is not broken for single cans.
Higher Sensitivity Levels

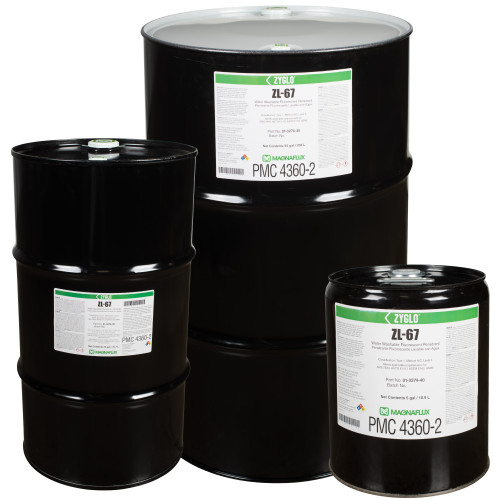

Zyglo® ZL-67 — Level 3, Water Washable
- Type 1
- Method A & C
- Level 3 · High Sensitivity
A high-sensitivity Level 3 penetrant, ZL-67 fluorescent water removeable penetrant finds smaller, finer indications in safety-critical components.

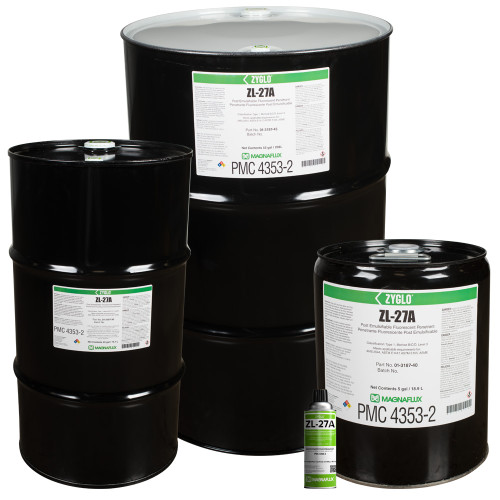

Zyglo® ZL-27A — Level 3, Post Emulsifiable
- Type 1
- Method B, C & D
- Level 3 · High Sensitivity
Post-emulsifiable ZL-27A is a Level 3, high-sensitivity Type 1 penetrant designed for inspections which require maximum process control and reliability.

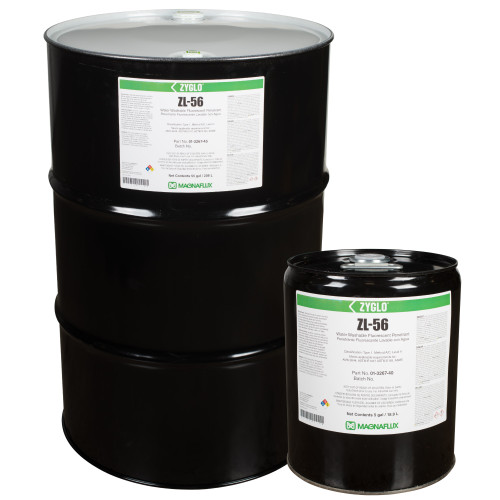

Zyglo® ZL-56 — Level 4, Water Washable
- Type 1
- Method A & C
- Level 4 · Ultra-High Sensitivity
ZL-56 fluorescent water-washable penetrant is safe for use on alloys in engineering and aerospace use.
Developer, Emulsifier & UV Lamp

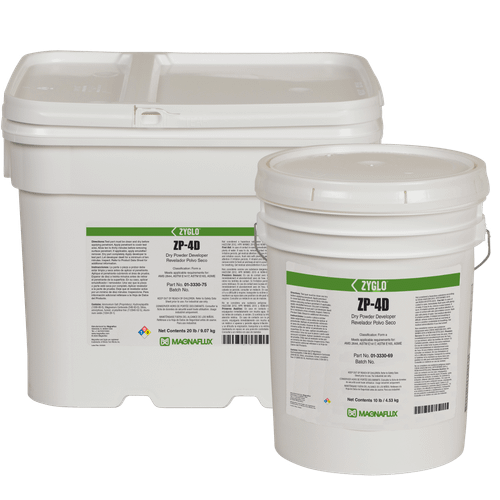

Zyglo® ZP-4D Dry Powder Developer
- Form a · Dry Powder
- Methods A–D
ZP-4D is a dry powder developer for form A penetrant testing that is ideal for highly sensitive fluorescent penetrant processes.

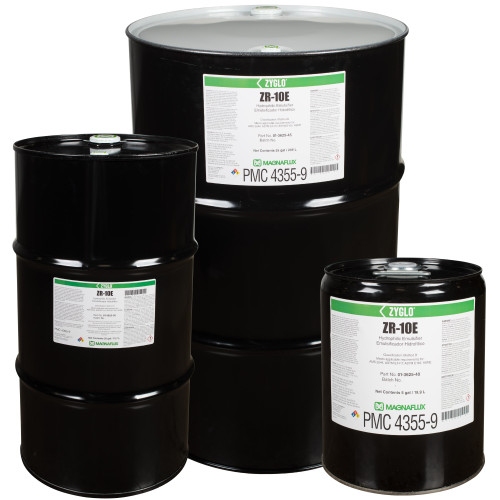

Zyglo® ZR-10E Hydrophilic Emulsifier
- Hydrophilic
- Method D Remover
ZR-10E minimizes surface background during Method D fluorescent penetrant testing while protecting indication integrity.

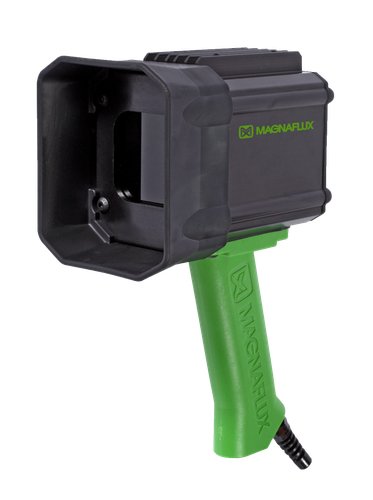

EV6000 Hand-Held LED UV Lamp
- UV-A · 365 nm
- 9 in Beam
The EV6000 LED UV lamp is a portable, hand-held UV lamp for fluorescent non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections.
Type, Method, Level — What the Spec Is Asking For
Magnaflux's data sheet identifies every penetrant by Type, Method and Sensitivity Level, and the first tip in their process guide is “Check required specifications before beginning penetrant inspection.” Match all three to the callout in your procedure.
Type — how you inspect
- Type 1
- Fluorescent — inspect under a UV lamp
- Type 2
- Nonfluorescent (visible) — inspect in a well-lit environment
Method — how you remove it
- Method A
- Water wash
- Method B
- Post emulsifiable, lipophilic emulsifier
- Method C
- Solvent removable
- Method D
- Post emulsifiable, hydrophilic emulsifier
Sensitivity Level — the Zyglo® range
- Level ½
- ZL-15B
- Level 1
- ZL-19, ZL-425
- Level 2
- ZL-60D, ZL-440, ZL-150, ZL-2C — medium sensitivity
- Level 3
- ZL-67, ZL-27A
- Level 4
- ZL-56, ZL-37
Each penetrant's Type, Method and Level are from its Magnaflux Product Data Sheet: ZL-60D (rev. July 2023), ZL-67 (rev. June 2021), ZL-27A (rev. July 2023) and ZL-56 (rev. April 2022). Method definitions and the Zyglo range by level are from Magnaflux's Penetrant Testing Process Guide.
Fluorescent Magnetic Particle Baths
Magnaflux's 14A fluorescent particles as a dry powder for your own oil or water bath, or already built into a bath: ready to use in Carrier II oil, a water-based concentrate, or a dry premix for making a water bath.

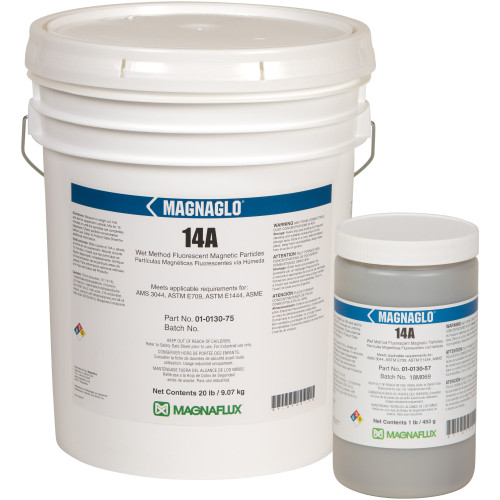

14A Wet Method Particles
- Dry Powder
- Oil or Water Bath
A highly sensitive magnetic particle powder, 14A fluorescent mag particles are engineered to locate very fine discontinuities in critical parts and applications.

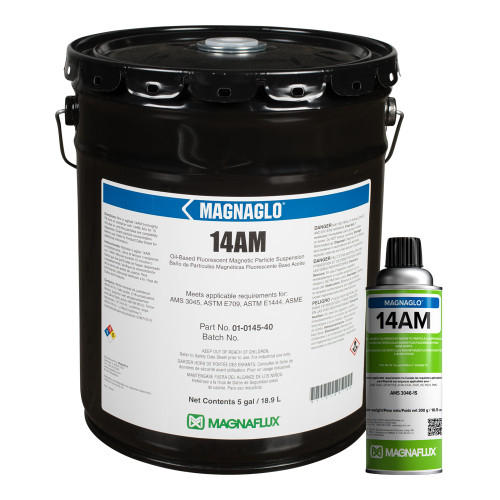

14AM Oil-Based Suspension
- Oil · Carrier II
- Ready to Use
14AM is a ready-to-use magnetic particle suspension liquid for locating very fine discontinuities in critical parts and applications.

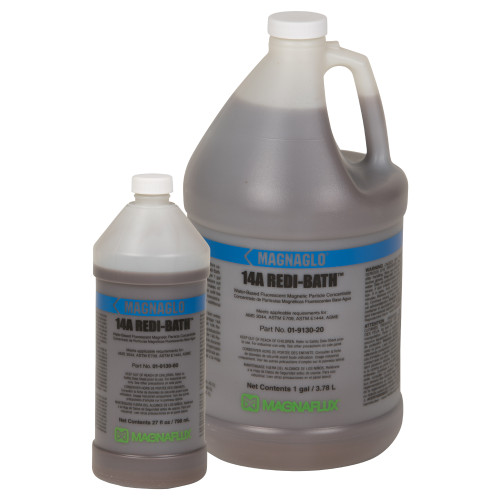

14A Redi-Bath Water-Based Concentrate
- Water
- Concentrate
14A Redi-Bath is a highly sensitive water-based magnetic particle liquid for locating very fine discontinuities in critical parts.

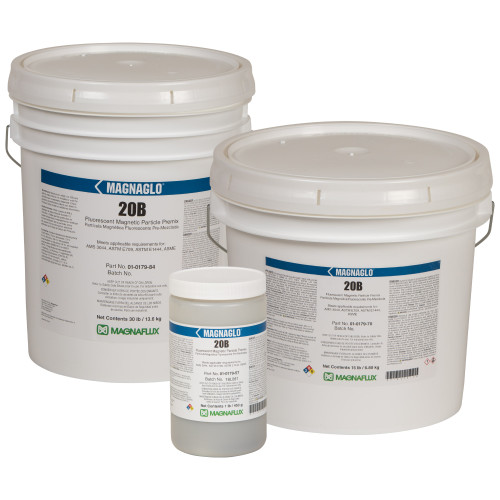

20B Fluorescent Premix
- Water Bath
- Dry Premix
20B is a highly-sensitive magnetic particle premix powder for locating fine discontinuities in high volume applications.
Visible Dry Method Particles
#1 Gray Non-fluorescent Particles
- White-gray
- Light, Medium & Dark Surfaces
Pale white-gray particles provide strong contrast on most metal surfaces, including high reflective surfaces during dry method mag particle testing.
#2 Yellow Non-fluorescent Particles
- Pale Yellow
- Light, Medium & Dark Surfaces
Pale yellow particles provide strong contrast on light, medium and dark colored metal surfaces during dry magnetic particle testing.
#8A Red Non-fluorescent Particles
- Rust Red
- Highly Reflective Surfaces
Rust red particles provide strong contrast on most metal surfaces during dry magnetic particle testing.
Aerosol cans, bottles, jugs and jars ship by the case and are not broken for singles.

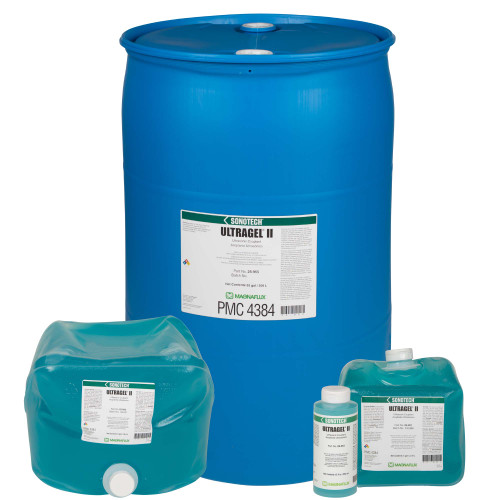

Ultragel® II Ultrasonic Couplant
Magnaflux's general-purpose, medium viscosity gel couplant for flaw detection and sizing, thickness gauging, flow metering and acoustic emission testing.
- Ultrasonic Testing
- Medium Viscosity Gel
- Most Composites & Metals
- Approvals, per Magnaflux — Magnaflux states Ultragel II is Pratt & Whitney approved and meets nuclear grade specifications for halogen and sulfur levels
- Where it's used — Magnaflux lists vertical and overhead surfaces, weld inspection, rough surfaces, composites, turbine blades and aircraft wheel maintenance among its ideal applications
- Cleans up with water — Magnaflux's data sheet calls for a water rinse (warm/hot water recommended), isopropyl alcohol or 100% ethyl alcohol
| Size | Magnaflux Part No. |
|---|---|
| 12 fl oz / 354 mL bottles (case of 12) | 25-912 |
| 1 gal / 3.78 L | 25-901 |
| 5 gal / 18.9 L | 25-905 |
Magnaflux notes Ultragel II may darken or discolor magnesium.
Documents Your Quality Department Will Ask For
English and Spanish safety data sheets and the Magnaflux data sheet for every consumable on this page, the EV6000 lamp's data sheet, and Magnaflux's penetrant process guides.
| Product | SDS · English | SDS · Español | Data Sheet |
|---|---|---|---|
| ZL-60D | |||
| ZL-67 | |||
| ZL-27A | BulkAerosol | BulkAerosol | |
| ZL-56 | |||
| ZP-4D | |||
| ZR-10E | |||
| EV6000 UV Lamp | — | — | |
| 14A | |||
| 14AM | BulkAerosol | BulkAerosol | |
| 14A Redi-Bath | |||
| 20B | |||
| #1 Gray | |||
| #2 Yellow | |||
| #8A Red | |||
| Ultragel® II |
Need a Pack Size or Magnaflux Product You Don't See?
Tell us the procedure and the classification your spec calls for and we'll quote the matching Magnaflux product and pack size, and the stocking plan behind it.
