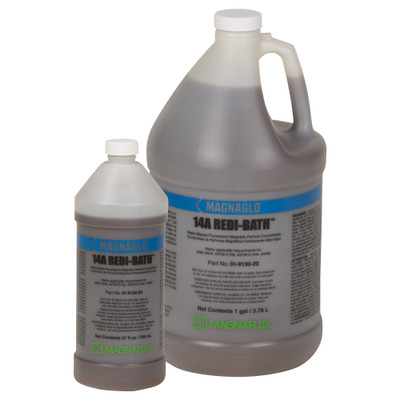

14A Redi-Bath Product Group
Magnaflux

Magnaflux 14A Redi-Bath Water-Based Fluorescent Magnetic Particle Concentrate

Item No: 14A-Redi-Bath

14A Redi-Bath is a highly sensitive water-based magnetic particle liquid with for locating very fine discontinuities in critical parts during fluorescent mag particle inspection.

A concentrated liquid with the best-in-industry 14A magnetic particles with water conditioners and corrosion inhibitors, 14A Redi-Bath is designed to be diluted with water to make magnetic particle water bath. The ultra-sensitive 14A particles provide clear, bright, fluorescent green indications under ultra-violet black light for unbeatable inspection quality and accuracy, with superior corrosion protection.

14A Redi-Bath is an ideal choice for high-volume testing of machined parts, forgings and castings where the mag particle bath needs to be changed out frequently due to drag-in or heavy-use.

14A Redi-Bath meets all major industry and NDT specification requirements, including automotive, API and ASTM standards.

Applications

Ideal application: After secondary processing, Critical applications, High volume testing, Machined parts, Mixing with hard-water, Smooth surface finish, Very fine to fine discontinuities

Defect examples: Fatigue cracks, Grinding cracks, Inclusions, Laps, Quenching cracks, Seams, Shrink cracks, Tears, Welding defects

Specification compliance listed by Magnaflux

AMS 3044, ASME BPVC, ASTM E1444, ASTM E709, MIL-STD-2132, MIL-STD-271, NAVSEA 250-1500-1, NAVSEA T9074-AS-GIB-010/271

Product description, properties and specification compliance as published by Magnaflux on the 14A Redi-Bath product page and Product Data Sheet (rev. December 2023).

Specifications

NDT TypeFluorescent Magnetic Particle Testing

Traceability & Compliance

Technical Data

Environment & Safety

Transport & Storage

Downloads
