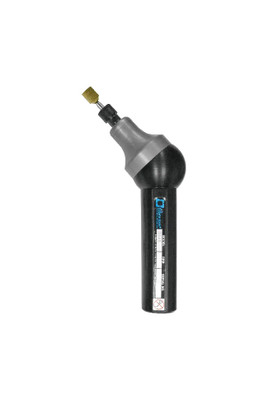

Air Turbine Tools 2545SVR Angle Hand Tool Series
Item No: 2545SVR
Differences you will feel immediately: Speed does the cutting with low stress. The patented 45° 2545SVR angle tool with slide valve control and rear exhaust is designed with the turbine in its angle head and no gears. Lightweight with low vibration provides superior comfort. Just 2 moving parts for superior reliability with our totally oil-free and maintenance-free mechanism. Select governed 30,000 or 40,000 RPM for deburring and weld removal. Optional trigger switch for quick shut-off available.
Included Equipment
- 2545SVR Hand Tool
- Collet System
- Collet Wrenches
- Rear Exhaust
- 5' Air Supply Assembly with Slide Valve
- 1/4" NPT Air Supply Fitting
Oil-free 90 psi / 6.2 bar clean, dry air supply required.
Description and specifications as published by Air Turbine Tools on the 2545SVR Product Specification sheet.
- Speed RPM:
- 30,000 / 40,000
- Power Rating hp (kW):
- 0.4 (0.30) at 30,000 RPM; 0.45 (0.34) at 40,000 RPM
- Inlet Air Pressure:
- 90 PSI (6.2 Bar)
- Sound Level:
- Less than 67 dBA
- Hand Tool Weight:
- 18oz (0.50kg)
Specifications
Traceability & Compliance
Technical Data
Environment & Safety
Transport & Storage
Downloads
$760.50
