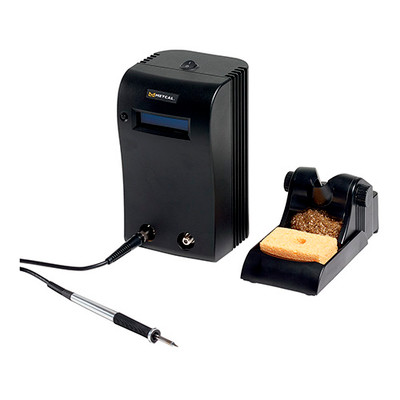

Advance Soldering And Rework System
The Metcal MX-500AV soldering system features advanced SmartHeat® Technology for precise, self-regulating temperature control. Each cartridge automatically senses and maintains its preset idle temperature throughout the life of the heater tip, ensuring consistent performance without external adjustments or calibration equipment. Designed for reliability and efficiency, the MX-500AV delivers superior soldering accuracy for professional electronics assembly and repair applications.
This product comprises of the following:
- MX-PS500 Power Supply
- MX-H1-AV Advanced Handpiece for MX Systems
- MX-W1AV Tip Saver Workstand for Advanced Handpiece
- MX-CP1 Cartridge Removal Pad
- Tips/Cartridges sold separately
Features and Benefits:
- A built-in Net Power Meter displays a graphical and numerical representation of the power applied to the cartridge.
- User Programmable Power Save Mode - adjustable from 10 to 120 minutes.
- Ground Fault Interrupt: AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system.
- Universal Power Supply: automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance.
- Full compatibility with existing and previous MX upgrade kits, tip-cartridges, hand-pieces and accessories.
- Input Line Voltage::
- 100 - 240 VAC, grounded circuit, 50/60 Hz
- Rated Power Consumption::
- 70 W max.
- Output Power::
- Variable, 40 W max.*
- Certification / Marking::
- cTUVus, CE
- Tip-to- Ground Potential::
- < 2 mV
- Tip-to-Ground Resistance::
- < 2 Ohm
- Ground Detection::
- Permanent
- Surface Resistivity::
- 105 - 109 Ohm
- Tip Temperature Accuracy::
- Meets or exceeds IPC J-STD-001 Standard
- Handpiece - RF Connector::
- F-type power connector
Item No:
MX-500AV
$750.00
